1.25G SFP Transceiver Module Single Mode 20km 1310nm 1550nm DDM Compatible With Cisco

Ask Lasest Price
Brand Name :	Olycom
Model Number :	OSBL1G20D-35/53
Certification :	CE RoHS FCC ISO9001
Price :	Negotiable
Payment Terms :	T/T, PayPal
Supply Ability :	5000pcs/month
Delivery Time :	3~5 working days

Add to Cart

Product Details
Company Profile

1.25G SFP Transceiver Module Single Mode 20km 1310nm 1550nm DDM Compatible With Cisco

1.25G Transceiver SFP Module single mode

20km 1310nm 1550nm DDM compatible with Cisco

Key Features of 1.25G Single Mode SFP Transceiver

Supports up to 1.25Gbps bit rates
Hot-pluggable SFP footprint
1310nm FP laser and PIN photo detector, Up to 20km for SMF transmission
Compliant with SFP MSA and SFF-8472 with single LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C

Introduction of 1.25G SFP Module

The SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 20km transmission distance with SMF.

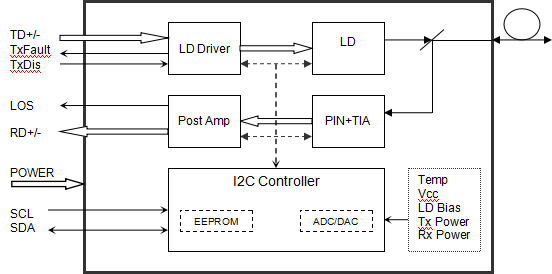

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage	Vcc	-0.5	4.5	V
Storage Temperature	Ts	-40	+85	°C
Operating Humidity	-	5	85	%

Recommended Operating Conditions

Parameter		Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Standard	Tc	0		+70	°C
	Extended		-20		+80	°C
	Industrial		-40		+85	°C
Power Supply Voltage		Vcc	3.135	3.30	3.465	V
Power Supply Current		Icc			300	mA
Data Rate			0.1	1.25		Gbps

Optical and Electrical Characteristics

Parameter		Symbol		Min	Typical	Max	Unit	Notes
Transmitter
Centre Wavelength			λc	1260	1310	1360	nm
Spectral Width(RMS)			Δλ			3	nm
Side-Mode Suppression Ratio			SMSR	-	-	-	dB
Average Output Power			P_out	-9		0	dBm	1
Extinction Ratio			ER	9.0			dB
Data Input Swing Differential			V_IN	180		1200	mV	2
Input Differential Impedance			Z_IN	90	100	110	Ω
TX Disable	Disable			2.0		Vcc	V
TX Disable	Enable			0		0.8	V
TX Fault	Fault			2.0		Vcc	V
TX Fault	Normal			0		0.8	V
Receiver
Centre Wavelength			λc	1530	1550	1570	nm
Receiver Sensitivity						-23	dBm	3
Receiver Overload				-1			dBm	3
LOS De-Assert			LOS_D			-24	dBm
LOS Assert			LOS_A	-38			dBm
LOS Hysteresis				0.5		4	dB
Data Output Swing Differential			V_out	600	800	1000	mV	4
LOS			High	2.0		Vcc	V
LOS			Low			0.8	V

Ordering information

Part Number	Product Description
OSBL1G20D-35	1310T/1550R, 1.25Gbps, LC, 20km, 0°C~+70°C, with DDM
OSBL1G20DI-35	1310T/1550R, 1.25Gbps, LC, 20km, -40°C~+85°C, with DDM
