AHD/CVI/TVI 1080P Video Optical Converter
Introduction
- OM615-1V↑WT/R AHD/TVI/CVI optical video transmitter and receiver
transmits 1ch AHD/HDTVI/HDCVI video signals on optical fiber.
- It is designed to transmit AHD/HDTVI/HDCVI high-definition
composite video for long-distance.
- 720P, 960P, 1080P and other video signals are adaptive.
- It achieves high-definition video transmission without delay and
compression, with high reliability.
- Data, contact closure, audio and other signals are optional.
Key Features
- Robust metal casing
- Lightning-proof solution
- Low optical link loss – max 30dB
- Without EMI, RFI and ground loop
- Bi-di transmission on 1 fiber with WDM
- Hot plug-and-play with switch power supply
- Available in standalone and 3U rack systems
Specification
| Optical |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode:20Km/40km, multimode:550m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Video |
| Channel Quantity | 1ch, from camera to control center |
| Video Input /Output Amplitude | typical 1Vpp (peak-to-peak), peak 1.2Vpp |
| Video Input Impedance | BNC 75Ω (unbalanced) |
| Digital Sampling | 64MHZ |
| Digital Bandwidth | 512MHZ |
| Differential Gain Phase | 10%-90% APL DG<1% (typical) |
| Video Bit Width | 8 bit |
| S/N ratio | >70dB |
| Interface | BNC |
| Electrical. Environmental. Mechanical |
| Operating voltage | DC 5V1A |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -45℃～+85℃ |
| Humidity | 0~95%non-condensing |
| Dimension-standalone | 120mm ×105mm ×28mm |
| Weight | 0.30kg/piece (Net Weight), 1.00 kg/pair (Gross Weight) |
Ordering Information
| OM615-1V↑WT/R-FC20 | 1ch video Tx, singlemode, single fiber, 20Km, FC connector |
| OM615-1V↑MT/R-FC5 | 1ch video Tx, multi-mode, single fiber, 0.5Km, FC connector |

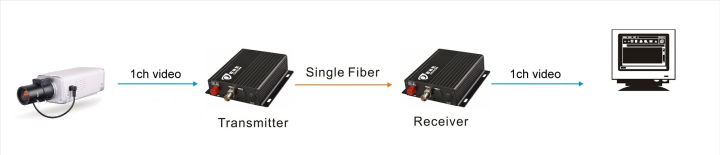

Application
- Express way security protection and toll station system
- City traffic monitoring system
- Building and campus monitoring system
- Industrial monitoring (airport, chemical plant, railway, etc.)
FAQ
1 Q: What is your lead time?
A:It usually takes 2~4 working days to produce and then will send
goods.
2. How will you send my goods?
A: We will send the goods by DHL, UPS or FEDEX, please check the
delivery details by the tracking number.
3. Please tell me something about your MOQ
A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.
4. Do you attend some exhibitions?
Yes, we regularly attend IFSEC UK, MIPS RUSSIA, Security ESSEN
GERMANY and ISC West USA.
Sometimes we are an exhibitor for some small shows like Mitec
Malaysia, Secon Korea and Intersec Saudi Arabia.
Each time, we took many photos for displaying and record, please
let us know if you need to check.
5. Can I visit your factory?
Sure. Each year there will be some important clients visiting us
for new models and enhancing our business relationship.
Please let us know if you have a plan.
Product Images
