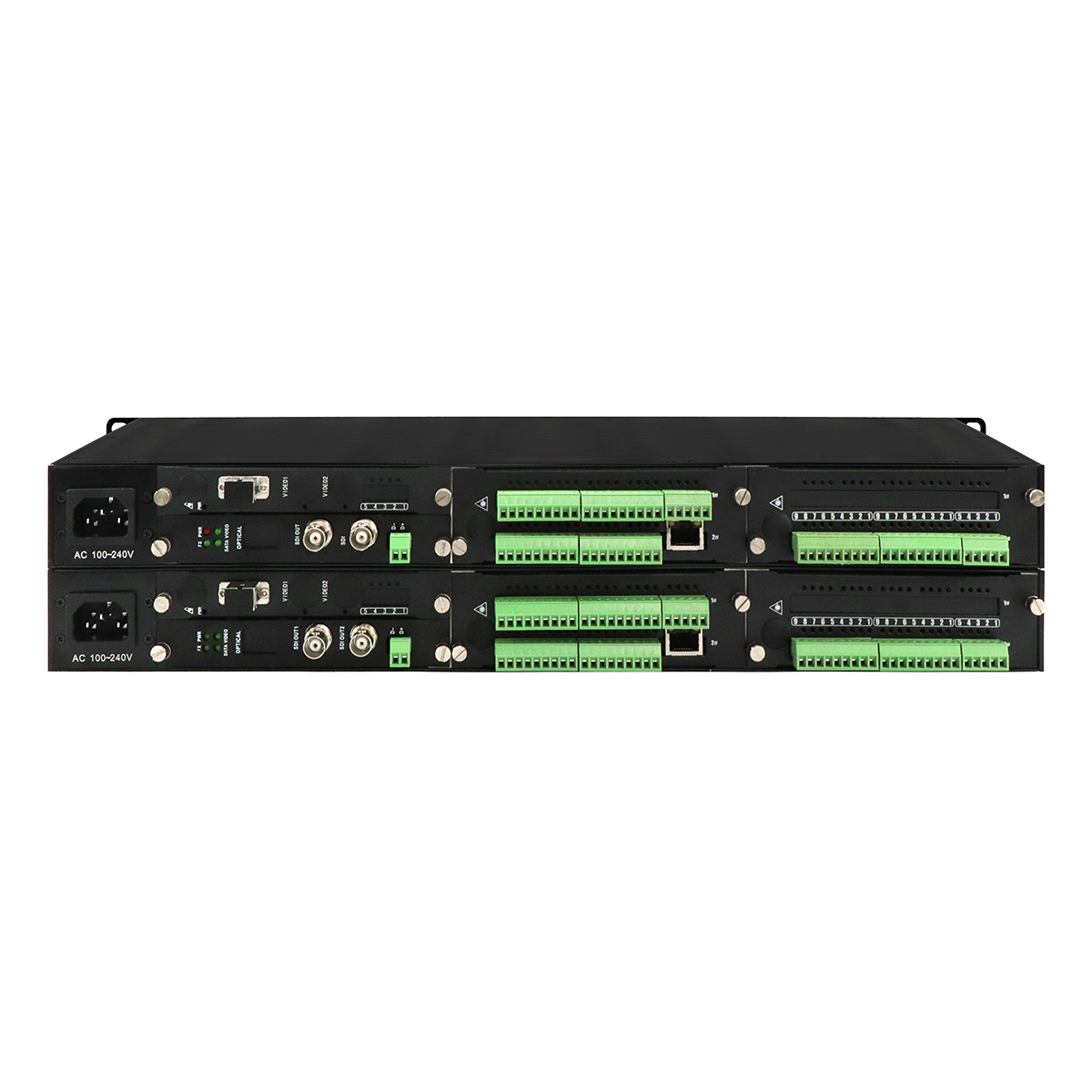

3G SDI Video Ethernet Data Fiber Converter Bidi RS232 Contact Closure Optical Extender 1U Rack

Ask Lasest Price
Brand Name :	Olycom
Model Number :	OM610U-1V↑4A↑↓2D↑↓4D↑↓4K↑↓1EWT/R
Certification :	CE RoHS FCC
Price :	Negotiable
Payment Terms :	T/T, Paypal
Supply Ability :	500 pairs per month
Delivery Time :	3~7 working days

Add to Cart

Product Details
Company Profile

3G SDI Video Ethernet Data Fiber Converter Bidi RS232 Contact Closure Optical Extender 1U Rack

3G-SDI video Ethernet Bidi RS485 RS422 data over fiber extender

Introduction

This video optical transmitter and receiver transmit 1ch 3G SDI 2ch bidi RS232 4ch bidi half-duplex RS485 4ch bidi contact closure and 1ch 10/100Mbps Ethernet on SC singlemode fiber cable, this SDI video media converter features below

Robust metal case
Low optical link loss–max 30dB
Lightning-proof solution
Without EMI, RFI and ground loop
Bi-di transmission on 1 fiber with WDM
High quantification level of 8 BIT
Hot plug-and-play with switch power supply
Available in standalone and cabinet systems

Specification

Optical
Wavelength	1310nm/1550nm
Fiber Type and Distance	multimode (50/125um) 5Km, ( 62.5/125um) 2Km single mode (9/125um) 20Km / 40Km
Transmitting Power	-5dBm to -10dBm
Receiving Sensitivity	-26dBm to -30dBm
Return Loss	> 14dB
Jitter	< 0.2UI
Interface	SC
Video
Signal type	HD-SDI, SDI, and 3G-SDI digital video signals
Gain	Unity
Resolution	8 or 10 bits, automatic
Data rates	270 Mbps, 1.485 Gbps, 2.970 Gbps
Operation standards	SMPTE 259M-C, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.1120
Auto data rate lock	Yes

Data
Data Protocol	RS232, RS485, Manchester, BIPHASE data
Bandwidth	0~300kbps
Error rate	10-9
Interface	Phoenix terminal
Audio
Impedance / Voltage	600ohm(unbalanced) / 2.0Vp-p
Frequency Response	10~20kHz
Total Harmonic Distortion	<0.05%
Differential Phase	< ±1
S/N ratio	>95dB(weighting)
Interface	Phoenix terminal
Sample Rate	48k Hz
Resolution	16 bits
Contact Closure
Signal Input	Alarm, Binary input, support TTL, RS-232/422/485 or passive switch button
Signal Output	Arbitrary alarm, Binary output, support TTL, RS-232/422/485 or relay output
Interface	Phoenix terminal

Ethernet
Work Mode	Full duplex / half duplex, autosensing
Network Speed	10/100Mbps, autosensing
Interface	RJ45

Electrical. Environmental. Mechanical
Operating Voltage	Rack: dual 11~240V AC
Operating Temperature	-35℃～+75℃
Storage Temperature	-45℃～+85℃
Humidity	0~95% non-condensing

Application

Express way security protection and toll station system
HD CCTV
Television Studio
City traffic monitoring system
Live Broadcast

Ordering Details

Olycom OM610 series of optical transmitter and receiver offer a wide selection of configurations, ranging from a simple setup with a single channel of a specific type of signal to sophisticated solutions (video, audio, data, telephone, alarm, and Ethernet).
The flexible configurations are open to customization and ODM to cater various needs.

OM610-1V↑2D↓2A↑1E WT/R	1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet
OM610-1V↑2D↓2A↑2K↑WT/R	1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch Contact Closure Tx
OM610-2P1EWT/R	2ch Telephone + 1ch 10/100M Ethernet
OM610-2V↑1D↓1P1E WT/R	2ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone.
OM610-2V↑2D↓2A↑1E WT/R	2ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet
OM610-4EWT/R	4ch 10/100M Ethernet
OM610-4P2D↓WT/R	4ch Telephone+ 2ch RS485 data Rx
OM610-4V↑1D↓4E WT/R	4ch video Tx + 1ch RS485 data Rx + 4ch 10/100M Ethernet
OM610-4V↑1D↓4PWT/R	4ch video Tx + 1ch RS485 data Rx + 4ch Telephone
OM610-4V↑12D↓WT/R	4ch video Tx + 12ch RS485 data Rx

FAQ

1 Q: Do you accept sample order?

A: Yes. Sample order to check our services and quality.

2 Q:Can I have any discounts?

A: Discounts will be given to repeat orders, regular clients and discount products.

3 Q:Tell me something about your packing.

A: It is neutral packing. If you have your own packing box, we support it.
