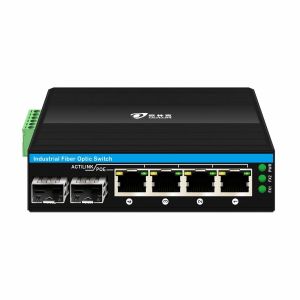

6 Port Gigiabit unmanaged Ethernet Switch Din rail network switch DC12V/24V Input

Ask Lasest Price
Brand Name :	Olycom
Model Number :	IM-FP244BGE
Certification :	CE RoHS FCC ISO9001
Price :	Negotiable
Payment Terms :	T/T, PayPal
Supply Ability :	3000pcs/month
Delivery Time :	3~5 working days

Add to Cart

Product Details
Company Profile

6 Port Gigiabit unmanaged Ethernet Switch Din rail network switch DC12V/24V Input

6 Port Gigiabit unmanaged Ethernet Switch

Din rail network switch DC12V/24V Input

Key Features of Industrial Network Switch

Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at/bt power on to 1 ~ 4 RJ45 ports
4 x 10/100/1000Mbps Auto-sensing RJ45 ports
2 x 1000Mbps SFP fiber port
6 KV Ethernet surge protection, adapt to a harsh outdoor environment
Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard,
half-duplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
A store-and-forward switching mechanism
Operating environment temperature:-40 ° ~75 ° c

Specificaiton of 6 port Gigiabit Poe Switch

Product Name	10/100/1000Mbps Industrial POE Fiber Switch (2F+4TP)
Model No.	IM-FP244BGE
Port	2x 100/1000Mpbs SFP ports SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features	Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) DRAM size: 128M Flash size: 16M Packet buffer size: 4Mb
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs	Power, network, fiber
Power supply	POE power supply input voltage: DC12V/24V Single PoE power supply output power: 15.4W (port 1~4) (802.3at standards required special instructions)
Environment	Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing
Industry Standards	EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4
Safety	CE Mark ,commercial CE/LVD EN60950
Mechanical information	Shell:Corrugated metal shell Safety class:IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method:Din-rail mounting
Warranty	3 years

Application

Ordering Details:

IM-WP054BGE	1100M/1000M Copper Uplink+410/100/1000M PoE Downlink 4*PoE af/at, 120W PoE budget, DC12V/DC24V/DC48V input WebManaged Features are available
IM-FP144BGE	1100M/1000M SFP Uplink+410/100/1000M PoE Downlink 4*PoE af/at, 120W PoE budget, DC12V/DC24V/DC48V input Web Managed Features are available
IM-FP244BGE	2100M/1000M SFP Uplink+410/100/1000M PoE Downlink 4*PoE af/at, 120W PoE budget, DC12V/DC24V input Web Managed Features are available

FAQ:

Q: Do you also offer accessories?

A: Yes, we also supply SFP transceiver, power supply and network cables, as a solution kit.

Q: Can Iconnect it with a non-PoE device?

A: Yes, it is 4*auto-sensing PoE ports detecting if the connected devices support PoE or not. There will ONLY be network transmission if it is not 802.3af or 802.3at compliant.

Q: Is it managed?

A:This model supports some web managed features such as VLAN, QoS, RSTP, Port Isolation...

Q: Where can I use it?

A: Below are some typical application examples. Solar power system(DC12V input) RV/Vehicle/Truck/Bus(DC12V input) VolP/Access control systems(DC24V input)
